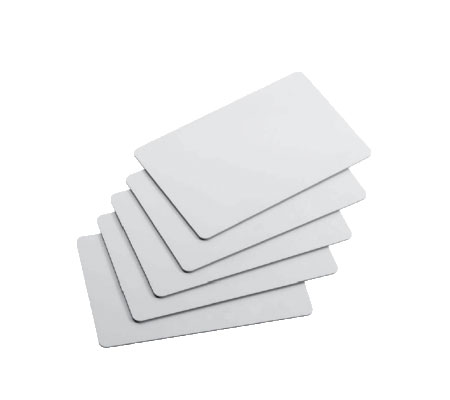

XCTF-8210D-C13 UHF RFID Card

Invengo

The Invengo XCTF-8210D-C13 UHF RFID cards combine Impinj Monza 5 passive RAN RFID (UHF) technology with NXP's Mifare Classic EV1HF functionality. This combi smart is a UHF card frequency designed for superior read/write performance combining Invengo's advanced antenna design and both RAIN RFID and HF industry leaders ICs.

Main Features of XCTF-8210D-C13


  • High performance transponders for a wide range of (combined) applications

  • Operating Frequency 840 to 960 MHz/ 13.56 MHz

  • State-of-the-Art Monza 5 and MIFARE Classic Ev chip

  • Superior read/write sensitivity

  • 100% performance tested


Specifications of XCTF-8210D-C13

RFIDProtocols SupportedEPCglobal Class 1 Gen 2, ISO 18000-63
Integrated Circuit (Ic)lmpinj Monza 5
operating Frequency840 to 960 MHz
EPC Size128 bits
TlD32 bits model number and48 bits serialized number
Access password32 bits
Kill password32 bits
HFProtocols SupportedISO/IEC 14443-A
Integrated Circuit (IC)NXP MIIFARE Classic EV1
Operating Frequency13,56 MHz
Memory1K (EEPROM Size - byte)
Security4-byte NUID
EnvironmentalOperating Temperature-40℃ to 85℃ (-40F to 185F)
Shelf LifeMinimum 2 years from date of manufacturing in 20℃ (68F)@50% RH
Bending Diameter>50 mm, tension max 10 N
Static Pressure<10MPa (10N/mm2)
ESD±2000V peak
DimensionsSize86 x54 x0.9 mm(3.39X2.13x0.04 in)
weight6 gram
