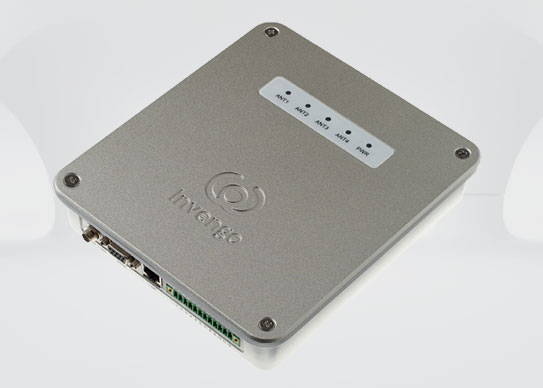

XC-RF850 UHF RFID Integrated Reader

Invengo

Invengo's XC-RF850 is a compact and fully integrated RAlN RFID(UHF) reader that delivers excellent performance at an incredible value. The UHF RFID reader has a sleek design and is easy to install. The XC-RF850 rfid scanners for sale is based on Linux for ease of programming and communication. With multiple connectivity options, the UHF handheld reader is ideally suited for vehicle, personnel and asset tracking applications.

XC-RF850 UHF RFID Integrated Reader Main Features

  • Low profile -7dBi integrated antenna reader

  • Circular Polarization

  • Second RF port for additional antenna

  • TCP/IP and RS-232 Communication

  • Onboard GPIO or Wiegand Output

  • API: JAVA, .NET, C++

  • Protection Level: IP65


Invengo UHF RFID Integrated Readers Applications

Invengo UHF RFID integrated readers, combining a Personal Digital Assistant (PDA) and antenna in one unit, are used in various applications for efficient and streamlined operations. In inventory management, they track and manage stock levels in retail and warehouses. For asset tracking, they monitor equipment and IT assets in real-time. Additionally, they are used in logistics for tracking shipments and industrial automation for monitoring production processes and machinery efficiency.

XC-RF850 UHF RFID Integrated Reader Specifications

Physical ParametersDimensions

291 x 291 x 86 mm

(11.4 x 11.4 x 3.4 in)

Weight2 kg (4.4 Lbs)
Case MaterialAluminum Alloy/ASA
EnvironmentalOperating Temperature-20˚C to 70˚C (-4˚F to 158˚F)
Storage Temperature-40˚C to 70˚C (-40˚F to 158˚F)
Humidity Range5% to 95%, non-condensing
IP RatingIP65
Power SourceAdapter (not included)

AC input 100V-240V

1.5A, 50 - 60 Hz; DC output 24V

± 5%/2.5A

Power ConsumptionApprox. 12W
Power over EthernetIEEE 802.3at
Communication/NetworkCommunication InterfaceRS-232, 10/100 Ethernet
Network ProtocolTCP/IP, DHCP
UHF RFIDSupported Protocols

EPC global UHF Class 1Gen2,

ISO/IEC 18000-63

Frequency

840 to 960 MHz

(Support Global Frequency)

Performance ParameterGPIO

2 inputs, optically isolated

3 relay control outputs or 2 Wiegand

outputs with 26/34/66 type

Operating ModeSingle/Dense Reader mode
RF Output Power-9 to -30 dBm, software configurable
AntennaNon-condensing Gain-7 dBi integrated antenna
PolarizationCircular
Antenna Ports1x RP-TNC (Male)





Invengo UHF RFID Integrated Readers FAQs

How do I choose the right UHF RFID integrated reader for my needs?

Choosing the right UHF RFID integrated reader depends on several factors specific to your needs:


1.Reading Range

·Short Range: For applications like access control or retail inventory.

·Medium Range: Suitable for warehouse management and asset tracking.

·Long Range: Ideal for large-scale logistics and outdoor applications.


2.Environment

·Indoor: Standard models work well in clean, controlled environments.

·Outdoor: Choose a reader with weatherproof and durable construction for harsh environments.


3.Compliance and Standards

·Regulatory Compliance: Ensure the reader meets local and international RFID standards (e.g., EPC Gen 2, ISO 18000-6C).

·Industry Standards: Choose a reader compatible with your industry-specific requirements.


Assess your specific requirements in terms of range, environment, connectivity, and budget to determine the best UHF RFID integrated reader for your application.

Can UHF RFID integrated readers write data to tags?

Yes, UHF RFID integrated readers can write data to tags. This capability is essential for various applications requiring dynamic data updates on RFID tags. Here are some key points:


·Data Writing: UHF RFID integrated readers can write new data or update existing data on RFID tags. This includes writing identifiers, status updates, timestamps, or other relevant information.

·Tag Configuration: They can also configure tag settings, such as setting passwords, locking/unlocking tags, and adjusting tag memory partitions.


Overall, UHF RFID integrated readers' ability to write data to tags enhances their versatility and functionality in various applications.
