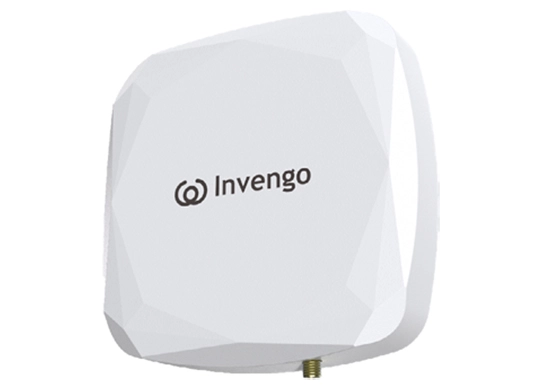

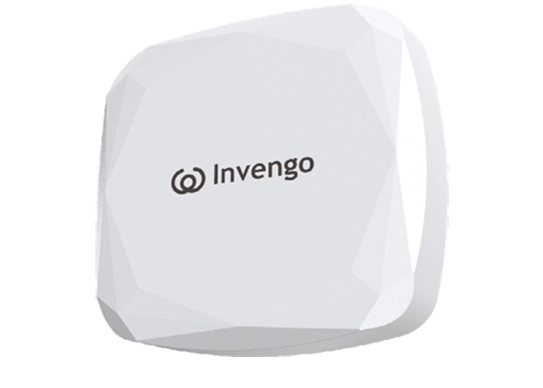

XC-AF802-BEN-A(B) Antenna

Invengo

XC-AF802-BEN-A (B) circular polarization series antenna, small size but excellent performance, working frequency range  covers 865MHz ~ 868MHz frequency band, according to different product models, RF connector installation method can  choose side out or back out. This series of antennas through careful design, good protection, excellent RF performance, beautiful appearance. Due to the  small size, the installation method is flexible and it is not susceptible to damage. It is suitable for smart retail, digital warehouse  management, logistics management and other fields.

Main Features of XC-AF802-BEN-A(B) Antenna

  • Circular polarization

  • High performance and high protection

  • Beautiful appearance and light weight



Specifications of XC-AF802-BEN-A(B) ANTENNA

Performance Parameter
Operating Frequency
865MHz~868MHz
VSWR
≤1.5:1
Impedance
50Ω
Gain
5dBi
Polarization Mode
Circular polarization
RF Connector
SMA-K type connectors
HPBW

E:100°

H:100°

Degree of Protection
IP65
Environment
Operating Temperature
-40°C to +85°
Storage Temperatur
-40°C to +85°C
Humidity Range
≤95%RH
Physical Parameters
Size
117.5mm×117.5mm×23.5mm
Weight
0.16kg
Radome Material
Modified ASA
Installation
Bracket mounting/Screw fastening
