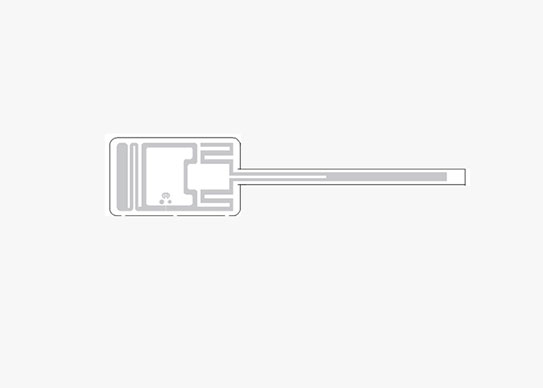

Invengo GEM-NXP UCODE8 UHF Inlay

Invengo

RFID Micro Tag Product Code:  XC-TF8108-C107

Chip: NXP UCODE8

Antenna Size: Varies. Please check the product sheet

Contact Invengo rfid inlay manufacturers for more information!

Main Features of Invengo GEM-NXP UCODE8 RFID Micro Tag

  • Optimized size for small size hang tags

  • Ideal inlay for tagging product boxes

  • Serialized TID

  • ISO 9001:2008 Quality Management System and ISO 14001:2004 Environment Management System support

  • 100% Quality Tested


Specifications of Invengo GEM-NXP UCODE8 RFID Micro Tag

RFIDProtocols Supported

ISO/IEC 18000-6C

EPCglobal C1G2

Integrated Circuit (IC)NXP Ucode 8
Operating Frequency902 to 928MHz
EPC size128 bits
TID96 bits serialized number
Access password32 bits
Kill password32 bits
EnvironmentalOperating Temperature-40˚C to 85˚C (20% to 90% RH)
Recommended-20˚C to 50˚C (20% to 90% RH)
Storage Temperature-40˚C to 85˚C (20% to 90% RH)
Recommended25˚C±2˚C (65% RH)
Shelf LifeMin. 2 yrs from date manufacturing in 20˚C(68˚F)@ 50% RH
Bending Diameter>50mm,tension max.10N
Static Pressure<10 MPa (10 N/mm2)
ESD±2000V peak
AdhesiveAcrylic
Data retention10 years
Endurance100.000 cycles
